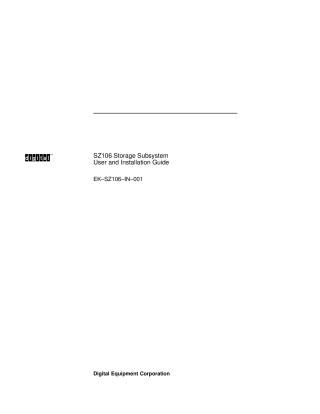

SZ106 Storage Subsystem User and Installation Guide

This document is the User and Installation Guide for the Digital Equipment Corporation (DEC) SZ106 Storage Subsystem, published in July 1992.

The guide provides essential information for the physical installation, basic setup, and initial understanding of the SZ106. Key aspects include:

• Product Overview & Specifications: The SZ106 is a SCSI-bus compatible storage subsystem with a substantial 42.0 GB data backup capacity and an 800 KB/s sustained data rate. It operates on conventional AC power (100-240 Vac) and is designed for general office environments, weighing 90 kg (170 lbs). It explicitly states the SZ106 contains a TZ867 magazine tape subsystem.
• Physical Installation: Detailed steps cover site planning (space, power, and environmental requirements like temperature and humidity), setting the unique SCSI ID (0-7) using switches, and connecting the SCSI signal cable and power cord. It emphasizes the critical need for SCSI bus termination if the SZ106 is the last or only device on the bus.
• Acceptance Testing & Operation: For detailed information on power-on self-test (POST) and general operation, controls, and indicators, the document directs the user to the "Tx867 Series Magazine Tape Subsystem Owner's Manual," indicating that the SZ106 manual focuses primarily on the subsystem's integration.
