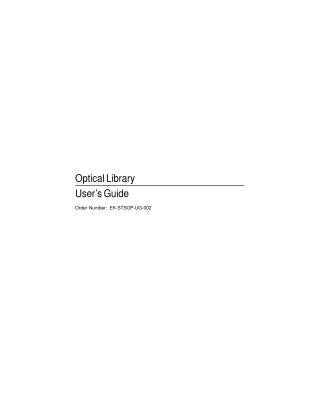

Optical Library User's Guide

This document is the User's Guide for the Digital Equipment Corporation Optical Library (Order Number: EK-STSOP-UG-002), published in August 1993. It serves as a comprehensive manual for users to understand, operate, maintain, and troubleshoot the optical storage system.

The guide covers the following main areas:

• Technical Overview: Describes the features, components (e.g., disk drives, autochanger mechanism, mailslot, storage slots, picker), common terminology, and SCSI architecture of the Optical Library. It also introduces control panel information logs, diagnostic tests, and general maintenance.
• Optical Disks: Provides information on the advantages of optical storage, different types of optical disks (rewritable and write-once), guidance on choosing and labeling disks, and proper care and security (including write-protection).
• Moving the Optical Library: Details procedures for safely moving the unit over short distances and preparing it for long-distance shipping, emphasizing steps to prevent damage.
• Basic Front Panel Operations: Explains the use of front panel features and controls for tasks such as loading and removing disks, changing configurations, retrieving performance data, running diagnostic tests, and setting the system's SCSI addresses.
• Rear Panel Configurations and Connections: Illustrates and describes the various connectors and switches located on the rear panel for power and SCSI connections.
• Securing the Optical Library: Discusses security considerations, including how to set and manage a password and implement security configurations to restrict access to the unit and its media.
• Appendices: Offer detailed reference material, including tables of configuration options and defaults, information logs, comprehensive control panel diagnostic tests, troubleshooting steps for common problems, and a list of product numbers, options, and supplies. Installation instructions for various models of the Optical Library are also provided.
