RZ26L Disk Drive Data Sheet

This document is the RZ26L Disk Drive Data Sheet, published by Digital in February 1994.

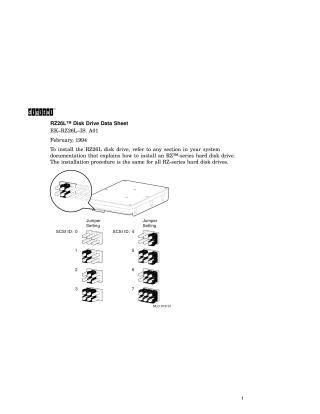

It provides essential information for the RZ26L disk drive, specifying that its installation procedure is identical to other RZ-series hard disk drives, directing users to their system documentation. Jumper settings for SCSI IDs (0-7) are illustrated.

The core of the document is a detailed specification table outlining:

• Capacity: 1.05 GB (formatted) with a 512 KB buffer.
• Physical Dimensions: Approximately 0.49 kg (1.08 lb) and measuring 2.54 cm (1.00 in) high, 10.2 cm (4.00 in) wide, and 14.6 cm (5.75 in) deep.
• Performance: Features include a data transfer rate of 2.7-5.5 MB/sec, an average seek time of 9.5 msec, and a rotational speed of 5400 RPM.
• Environmental Conditions: It also specifies operating temperature ranges (5°C to 55°C / 41°F to 131°F) and non-operating ranges (-40°C to 66°C / -40°F to 151°F), along with humidity limits for both states.
