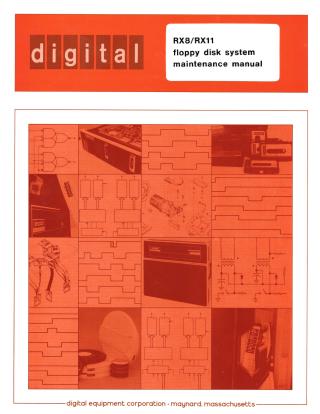

RX8/RX11 Floppy Disk System Maintenance Manual

This document is the "RX8/RX11 Floppy Disk System Maintenance Manual", published by Digital Equipment Corporation in 1975.

The manual provides comprehensive information on the RX8 and RX11 Floppy Disk Systems, which are low-cost, random-access mass memory devices designed to store data on preformatted, IBM-compatible flexible diskettes.

Key aspects of the system covered include:

• Components: The system consists of an RX01 subsystem (housing one or two floppy disk drives, read/write electronics, a microprogrammed controller, and a power supply) and an interface module (either an RX8E for PDP-8 systems or an RX11 for PDP-11 systems).
• Data Storage: It utilizes a "double frequency" recording scheme on diskettes, which are divided into 77 tracks and 26 sectors. Each sector contains 128 bytes of data, along with header and Cyclic Redundancy Check (CRC) information, ensuring compatibility with IBM 3740 equipment.
• Functions: The RX01 performs implied seeks, automatic head position verification, and hardware calculation/verification of CRC.

The manual itself is organized into chapters detailing:

• General Information: Physical description of components, system compatibility, logical format of data on diskettes, and detailed specifications (e.g., capacity, data transfer rate, reliability, environmental requirements).
• Installation and Operation: Guidance on site preparation, cabling, power, environmental considerations, unpacking, physical installation, and best practices for handling, storing, and shipping diskettes.
• Programming Information: Detailed programming interfaces for both the RX11 and RX8E, including register descriptions, function codes, and programming examples.
• Theory of Operation: An in-depth discussion of the system's hardware and microprogram firmware, including block diagrams and logical explanations of interfaces, the microprogrammed controller, read/write electronics, and mechanical drive mechanisms.
• Maintenance: Recommendations for tools and test equipment, customer care procedures, module removal and replacement, corrective maintenance, and diagnostic routines for error recovery.
