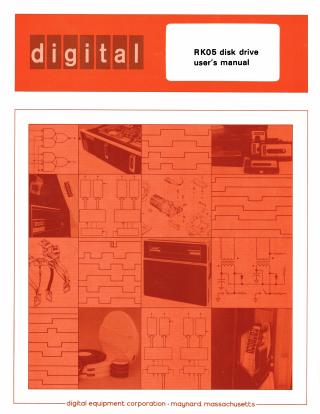

RK05 Disk Drive User's Manual

This document is the RK05 Disk Drive User's Manual, published by Digital Equipment Corporation (DEC) in November 1976.

The manual provides comprehensive information on the RK05 disk drive, a self-contained, random-access data storage device designed for small to medium-size computer systems. Key aspects covered include:

• General Information: Details the drive's introduction, warranty, and specifications (e.g., storing up to 25 million bits on 12- or 16-sector magnetic cartridges, 406 data tracks, 1500 rpm). It describes the major assemblies and systems, such as the spindle and drive, linear positioner, cartridge-handling system, air system, logic assembly, power supply, and read/write heads, along with controls and indicators.
• Installation: Guides users through unpacking, mechanical installation (including handling shipping brackets), and crucial cartridge handling practices and precautions to ensure data integrity and drive longevity (e.g., storage, cleaning, temperature stabilization, avoiding magnetic exposure). It also outlines normal operating procedures for cartridge loading and unloading.
• Interface: Provides a detailed technical description of the input and output interface lines for connecting the drive to various DEC controllers (e.g., RK11-C, RK11-D). This includes signals for drive selection, cylinder addressing, data transfer (read/write), clocking, and various status reports (e.g., file ready, address accepted/invalid, seek incomplete, write protect, power status, sector/index pulses).
• Appendix: Includes information on the RK05-TA Off-Line Tester, detailing its move and write functions and connection procedures for diagnostic purposes.

Overall, the manual serves as a complete guide for setting up, operating, and understanding the technical interface of the RK05 disk drive.
