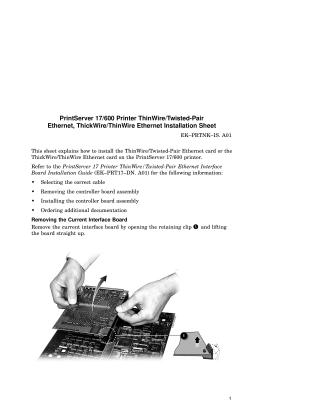

PrintServer 17/600 ThinWire/ThickWire Ethernet Install. Sheet

This document, EK-PRTNK-IS. A01, provides instructions for installing either a ThinWire/Twisted-Pair Ethernet card or a ThickWire/ThinWire Ethernet card on the PrintServer 17/600 printer.

It outlines two main procedures:

1. Removing the Current Interface Board: This involves opening a retaining clip and lifting the board straight up.
2. Installing the New Interface Board: This requires aligning the new board's hole over the controller board's retaining clip, pressing down on the connector etch ends, and then pressing down at the retaining clip location to secure it.

The document also advises referring to a separate guide (EK–PRT17–DN. A01) for other related information, including selecting the correct cable, and the procedures for removing or installing the entire controller board assembly.
