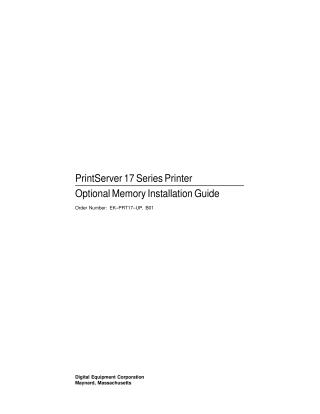

PrintServer 17 Series Printer Optional Memory Inst Guide

This document, the "PrintServer 17 Series Printers Optional Memory Installation Guide," provides detailed instructions for installing optional memory modules (RAM) into PrintServer 17 series printers to increase their memory capacity.

Key information includes:

• Purpose: To guide users through installing 4 MB or 8 MB optional memory modules.
• Memory Specifications: Digital memory modules use 70 ns chips. Users are cautioned that modules from other vendors not conforming to these specifications may affect performance.
• Static Electricity Warning: Emphasizes the critical need to use a grounding strap and attach it to the printer chassis before handling memory modules to prevent damage from static electricity.
• Pre-installation Steps: Includes turning off the printer, removing paper cassettes, and disconnecting the network cable.
• Controller Board Removal: Instructions for safely pulling out the controller board assembly.
• Module Installation: Step-by-step guidance on inserting memory modules into the three available slots, noting proper orientation (notched end). It also specifies the order for installing multiple modules (e.g., higher capacity modules in slot 1 first).
• Reassembly: Instructions for reinstalling the controller board, tightening screws, reconnecting cables, and powering on the printer.
• Ordering Information: A table lists required memory sizes (4MB or 8MB) and their corresponding order numbers, which depend on the printer's ROM version (V1.2 or older, V2.0 or newer).
• Troubleshooting: Advises referring to the PrintServer printer operator's guide if error messages appear after installation.
