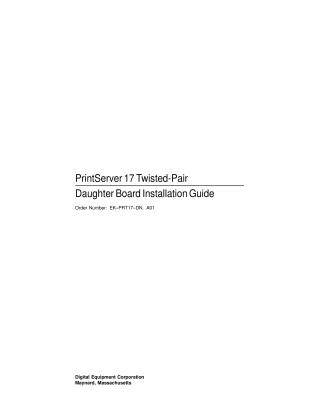

PrintServer 17 Twisted-Pair Daughter Board Installation Guide

This document is the "PrintServer 17 Twisted-Pair Daughter Board Installation Guide." It provides step-by-step instructions for installing a Twisted-pair Ethernet daughter board onto the printer controller board of a Digital Equipment Corporation PrintServer 17 printer.

The installation process involves:

1. Preparation: Powering off the printer, disconnecting the network cable, and removing paper cassettes.
2. Accessing the Controller Board: Loosening screws on the interface connector panel and pulling the controller board assembly out from the front of the printer.
3. Daughter Board Removal: Loosening captive screws on the existing daughter board, spreading retaining clips, and carefully lifting it from its connector.
4. New Daughter Board Installation: Aligning and pressing the new Twisted-pair daughter board onto the controller board's connector, ensuring it's securely in place.
5. Reassembly: Reinstalling the controller board assembly into the printer and tightening its screws.
6. Final Steps: Connecting the Twisted-pair Ethernet interface cable (noting that only one type of Ethernet cable can be connected at a time), and powering on the printer while checking for error messages.
