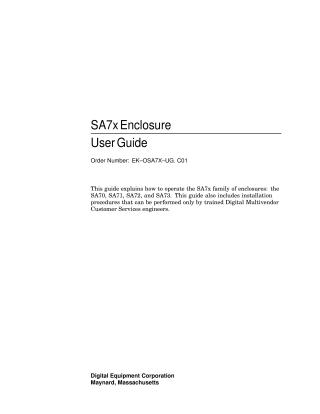

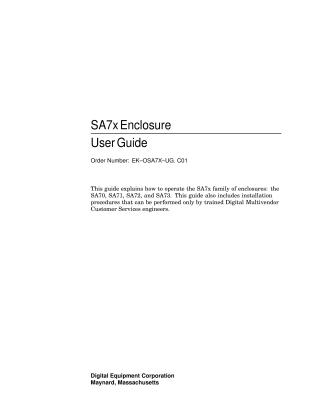

SA7x Enclosure User Guide

This document is the SA7x Enclosure User Guide, providing instructions for operating and installing the SA7x family of disk drive enclosures (SA70, SA71, SA72, SA73). These enclosures house RA7x disk drives (RA70, RA71, RA72, RA73) with capacities ranging from 280 MB to 2 GB.

Key aspects of the guide include:

• Target Audience: While it covers general operation for end-users, detailed installation procedures and certain maintenance tasks are explicitly designated for trained Digital Multivendor Customer Services engineers.
• Enclosure Overview: Details the components, subassemblies, configurations, and specifications of the SA7x enclosures, along with user precautions for data recovery, operating temperature, and electrostatic discharge (ESD) protection.
• Operation: Explains the functions of the SA7x front and rear panel switches and indicators, how to apply power, and how to place RA7x drives online and offline.
• Disk Drive Management: Provides procedures for installing and removing RA7x disk drives, including recording serial numbers and using drive position fillers to ensure proper cooling.
• Enclosure Installation: Covers steps for installing the SA7x enclosure into storage array cabinets (e.g., SA900), including selecting the correct line input voltage, setting drive unit numbers, and performing post-installation checkouts.
• Troubleshooting: Offers guidance on identifying and resolving common problems such as a dead enclosure, flashing power indicators, excessive drive errors, drives not visible to the controller, and issues with the Operator Control Panel (OCP).
• Technical Appendices: Includes information on environmental stabilization requirements, RA7x disk drive error rates, and minimum software/hardware versions for revision support.
