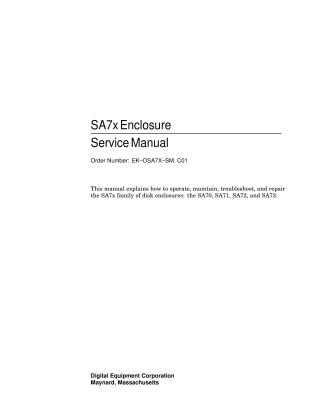

SA7x Enclosure Service Manual

This Service Manual, published by Digital Equipment Corporation, is intended for Digital Multivendor Customer Services engineers.

It provides comprehensive instructions and information for the SA7x family of disk enclosures (SA70, SA71, SA72, and SA73). The manual covers:

• Operation: How to use the enclosure's switches and indicators, apply power, and manage disk drives (online/offline).
• Maintenance: Procedures for recording disk drive serial numbers and general precautions.
• Troubleshooting: Identifying and resolving various issues, including dead enclosures, drive errors, and problems with the Operator Control Panel (OCP), providing specific error codes.
• Field-level Repair: Detailed steps for installing and removing RA7x disk drives (RA70, RA71, RA72, RA73), and replacing major Field Replaceable Units (FRUs) such as the power supply, OCP, transition boards (TB1, TB2), fan assembly, and internal cabling.

The SA7x enclosures are noted as being physically identical, with their specific designation (e.g., SA70 vs. SA71) determined by the type and storage capacity of the RA7x disk drives they accommodate (ranging from 280 MB to 2 GB). It also includes technical descriptions of the enclosure's components, environmental specifications, part numbers, and cabling diagrams.
