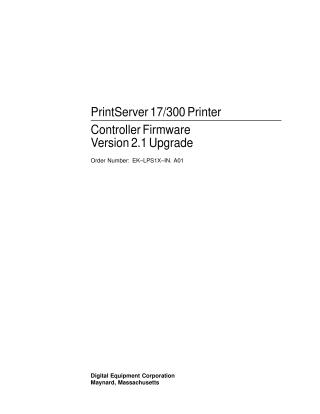

PrintServer 17/300 Printer Controller Firmware V 2.1 Upgrade

This document outlines the procedure for upgrading the controller firmware of the PrintServer 17/300 Printer to Version 2.1.

Key points:

• Purpose: The upgrade is necessary for PrintServer 17/300 printers that boot from NetWare, requiring a minimum NetWare software version of 5.0. It is not required for PrintServer 17/600 printers.
• Contents: The upgrade kit includes two ROM chips, an antistatic wrist strap, and this document. Additional tools needed are a flat work surface and a flat blade screwdriver.
• Precautions: Emphasizes using an antistatic wrist strap to prevent static damage, working on a flat surface to avoid bending the controller board, and careful handling of the delicate ROM chip pins.
• Installation Steps: Involves disconnecting the printer, removing the controller board, extracting the existing ROM chips, carefully installing the new Version 2.1 ROM chips (aligning pins and notches), reassembling the printer, and reconnecting cables.
• Verification: After installation, power on the printer and verify that "2.1" appears on the operator panel display, indicating a successful upgrade. A blank panel suggests improper installation or seating of the controller board/chips.
