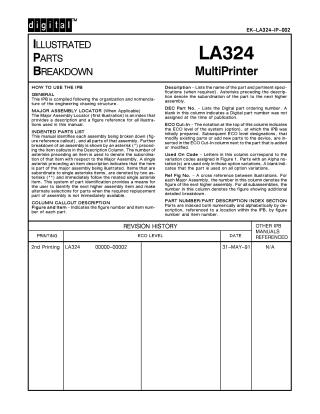

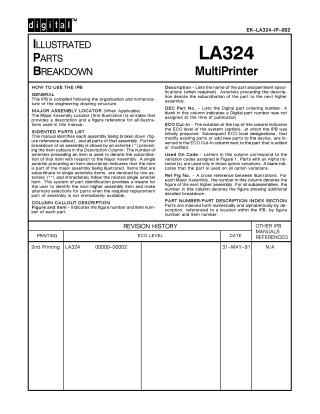

LA324 Multiprinter IPB

This document is an Illustrated Parts Breakdown (IPB) manual for the LA324 MultiPrinter.

Its primary purpose is to facilitate the identification and ordering of replacement parts for the printer. The manual is structured by the printer's engineering drawing breakdown into major assemblies and sub-assemblies.

Key features and organization include:

• Hierarchical Parts Lists: Parts are listed under their respective assemblies, with asterisks indicating subordination (e.g., * for a major assembly part, ** for its sub-component), which helps in identifying next higher assemblies and potential alternative parts.
• Detailed Part Information: Each entry provides a description, a Digital Equipment Corporation (DEC) part number (for ordering), ECO (Engineering Change Order) cut-in levels indicating modifications, and a "Used On Code" for compatibility with specific printer variations.
• Illustrations and Cross-References: Parts are linked to figures and item numbers, with "Ref Fig No." columns providing cross-references to other illustrations for higher assemblies or more detailed breakdowns.
• Comprehensive Indexes: The document includes an index by part number and an index by part description to aid in quick lookup.
• Revision History: This specific version is the 2nd Printing, dated May 31, 1991.
