VT240

This extensive document contains engineering and design information for a Digital Equipment Corporation (DEC) VT240 system, encompassing both its VR201 Monitor and LK201 Keyboard components.

The document primarily consists of:

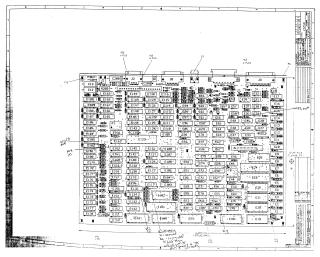

• Detailed Circuit Diagrams: Numerous pages display schematics illustrating the interconnections of various electronic components, including integrated circuits, resistors, capacitors, connectors, and logic units. These diagrams often detail memory (RAM), I/O decode, character pattern buffers, and control signals. Many pages feature a "CAUTION CHANGE IN-PROCESS" note, indicating active development or modification of the designs.
• Comprehensive Parts Lists: Multi-page tables provide a breakdown of all components used in the assemblies. Each entry specifies a part number, revision, detailed description (e.g., "CIRCUIT DRILL AND ETCH," "MFD CER," "RESISTOR NETWORK," "NAND GATE," "MICROPROCESSOR," "RAM," "CONNECTOR," "JUMPER"), quantity per variation, and reference designator. These lists are specific to the VT240, LK201 Keyboard, and VR201 Monitor.
• Assembly and Shipping Information: Sections include exploded views and notes for keyboard and monitor bezel assemblies, detailing keycap arrangements, lubricant application, interlayer bonding, alignment, marking, and packaging. Shipping lists also outline various keyboard configurations, such as different language keycap sets.

The document is marked as confidential and proprietary to DEC, protected under federal copyright laws, indicating its internal engineering nature. It serves as a comprehensive technical reference for the manufacturing, assembly, and design of the VT240 system.
